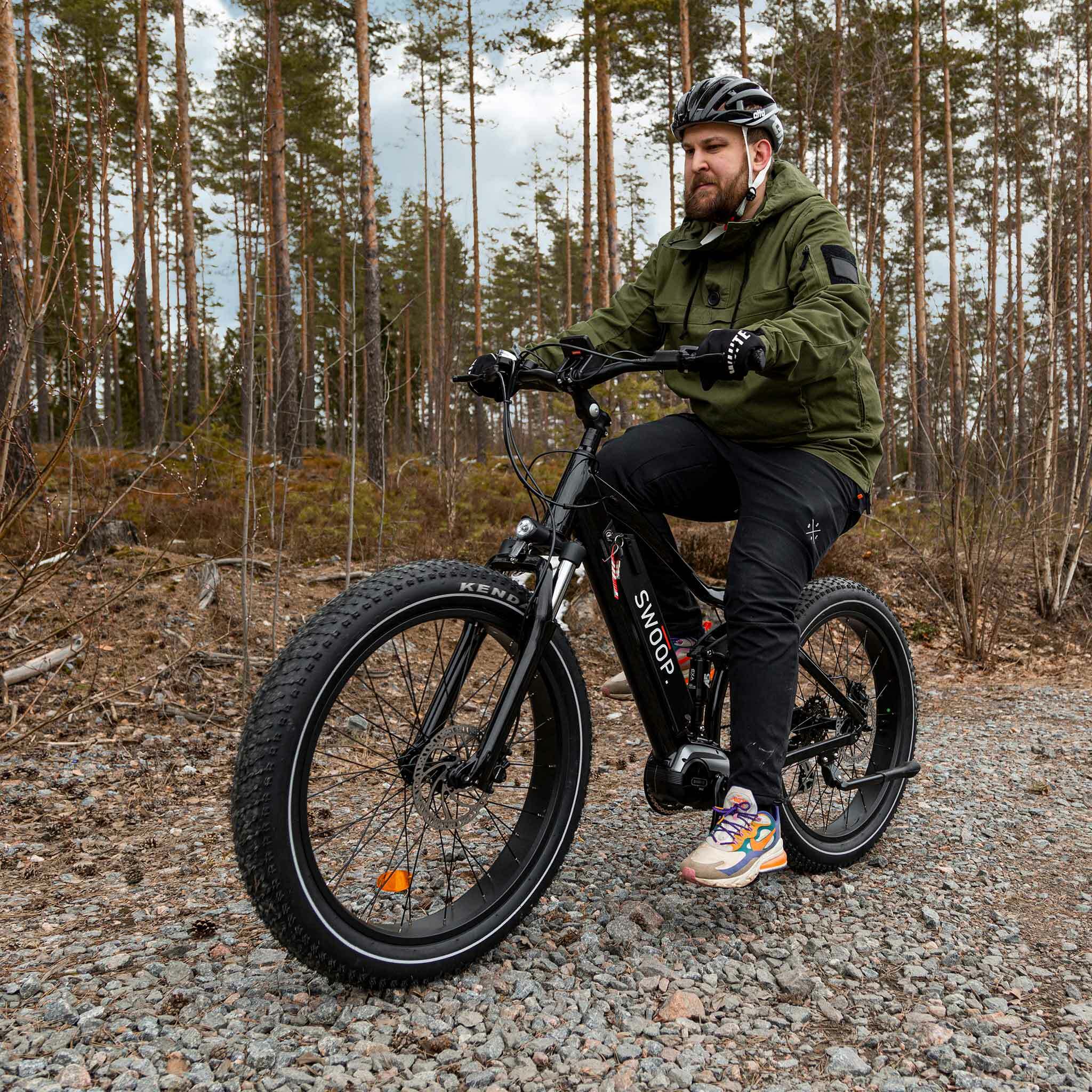

elektrische mountainbike fatbike Swoop Electric Fat Bike Ranger, 26"Premium quality and versatile electric Fatbike! The Swoop Ranger electric bike's excellent hydraulic suspension and 26 x 4. 0" extra wide tyres make cycling in challenging off road conditions and winter weather very easy. The Swoop Fatbike Ranger is also ideal for commuting and leisure cycling. The Swoop Fatbike Ranger electric bike has top of the range features, as the various components of the bike are produced by reputable brand manufacturers.

Premium quality and versatile electric Fatbike! The Swoop Ranger electric bike's excellent hydraulic suspension and 26 x 4.0" extra-wide tyres make cycling in challenging off-road conditions and winter weather very easy. The Swoop Fatbike Ranger is also ideal for commuting and leisure cycling. The Swoop Fatbike Ranger electric bike has top-of-the-range features, as the various components of the bike are produced by reputable brand manufacturers.

Durable and easily rechargeable battery: The top-quality LG 48V/10.5AH 3500mAh battery provides around 130 kilometres of riding on a single charge, and charging is easy with the included charging cable.

Excellent motor and assistance for speeds up to 25 km/h: The powerful Bafang 48V/250W motor simply starts up as soon as you start pedalling and stops accordingly when you stop pedalling. The electric motor can also be switched off if you wish, so that the entire bike runs on muscle power alone. With the power of the electric motor alone, you can reach a maximum speed of around 25 km/h. The motor is brushless and frictionless, making it more maintenance-free than a conventional brushed motor.

High-quality transmission: This e-bike has an exellent Shimano gearbox. The bike has seven gears to give you a comfortable ride on the flat and the amount of boost you need for climbing hills. The Swoop Fatbike Ranger offers five levels of assistance, making it easy to find the right level of assistance. Low assist levels require more leg power, while higher levels offer a lighter pedalling experience. The comfort of the ride is further enhanced by the ergonomic saddle.

Excellent brakes and headlights for safety: The functionality and reliability of the brakes are important safety factors in cycling. The Swoop Fatbike Ranger e-bike features Tektro's excellent hydraulic disc brakes on the front and rear. The bike also features LED lights both front and rear.

The LCD display gives you all the information you need: A trip computer with an LCD display on the bike's handlebars shows you all the information and settings you need while riding.

We recommend that you have your bike serviced after 100-300 km by a professional bike service shop. If you are having trouble getting your bike to perfect riding condition, contact a professional bike service.

The Swoop electric bike is delivered to you almost fully assembled and it takes very little time to get it ready for use:

• Attach the front tyre.
• Attach the front wheel.
• Attach the pedals.
• Check if the brake or gears need adjusting.

All the tools you need to assemble are included in the package.

Note: The product has a 2 year warranty period. The battery warranty period is 1 year.

Basic information

• Purpose: commuting, touring, leisure cycling
• Tyre size: 26"
• Recommended user height: 170 - 190 cm
• Load capacity: 160 kg
• Bike weight: 34 kg
• Size: 95% (only front tyre, handlebar, front light, pedals to be fitted)
• Warranty: 2 years, battery 1 year. (The warranty does not cover the wear and tear of consumable parts such as chains, sprockets, brake pads, etc. due to normal use.)

Battery

• Battery capacity: 840 Wh (48V 17.5 Ah)
• Battery cells: LG 3500MAH
• Battery type: lithium
• Range: up to 130 km (range will be affected by assistance level, terrain, user size and temperature)
• Battery charging time: 4-6 H
• Battery removable: yes
• Battery location: body in tube
• Battery charger: 48V 2A

Motor

• Motor: Bafang M420
• Motor power: 48V 250 W
• Motor torque: 65 Nm
• Motor location: mid-engine
• Maximum speed of assistance: 25 km/h
• Number of boost levels: 5

Display

• Display: LCD 52x57 mm
• Functions: battery charge, speed, average speed, odometer, trip meter, driving time, maximum speed

Frame, gears and transmission

• Frame size: 17"
• Frame height: 98,2 cm
• Frame material: aluminium
• Number of gears: 7
• Rear derailleur: Shimano Altus ARDM310DLC
• Shift lever: Shimano AMFTZ5007428
• Front sprocket: Shimano SLTX507R 2400mm 7speed
• Sprockets: PROWHEELNWS40A-S2-75 EB10-TT-LR-170

Brakes, tyres and suspension

• Suspension: hydraulic front and rear suspension
• Front brake: Tektro
• Rear brake: Tektro
• Brake type: hydraulic disc brakes
• Rims: 26*12G*36H BLACK
• Tyres: KENDA 26*4.0 K1151 BK/BSK/BKS+AV

Equipment

• Front light: included (LED, battery powered)
• Rear light: Included (LED, battery powered)
• Saddle: Included
• Standing aid: Included
• Luggage rack: Not included
• Fenders: Not included

Package dimensions:

• Weight: 40 kg
• Length: 162 cm
• Height: 92 cm
• Width: 28 cm
